Target™ Torch Turbine Flame kits and tips
Kits feature the adjustable Target Tips for professional soldering and brazing applications.Kits include a quick disconnect handle, 12 ft. hose and UL listed regulator.
- Hotter Turbine Flame
- Adjustable flame feature
- Tips have a filter and removable orifice
- Interchangeable with other quick disconnect style tips and equipment
- Made of heavy gauge stainless steel and brass
| Kit No. | Tip No. | Reg. fitting |

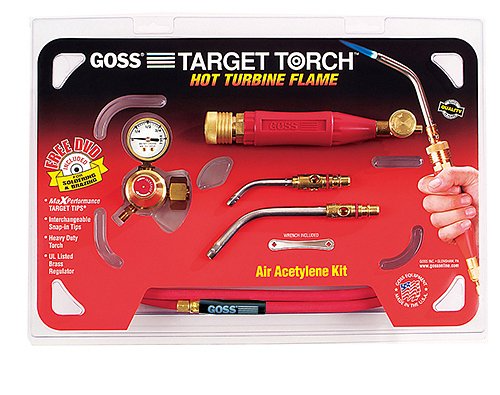

| KX-3B (shown) | GA-3, GA-11 | "B" Cylinder |
| KX-4B | GA-5, GA-14 | "B" Cylinder |
| KX-5B | GA-5 | "B" Cylinder |
| KX-5MC | GA-5 | "MC" Cylinder |
| KX-6B | GA-3, GA-8 | "B" Cylinder |
| KX-6MC | GA-3, GA-8 | "MC" Cylinder |
| KX-7B | GA-8 | "B" Cylinder |
| Tip No. | Tip Size | Soft Solder | Silver Braze |
| GA-2 | 1/4" | 1/8"-1/2" | 1/8"-1/4" |
| GA-3 | 5/16" | 1/4"-1" | 1/8"-1/2" |
| GA-5 | 3/8" | 3/4"-1½" | 1/4"-3/4" |
| GA-8 | 3/8" | 1"-2" | 1/2"-1" |
| GA-11 | 7/16" | 1½"-3" | 7/8"-1½" |
| GA-14 | 1/2" | 2"-4" | 1"-2" |
| GA-32 | 3/4" | 4"-6" | 1½"-4" |
